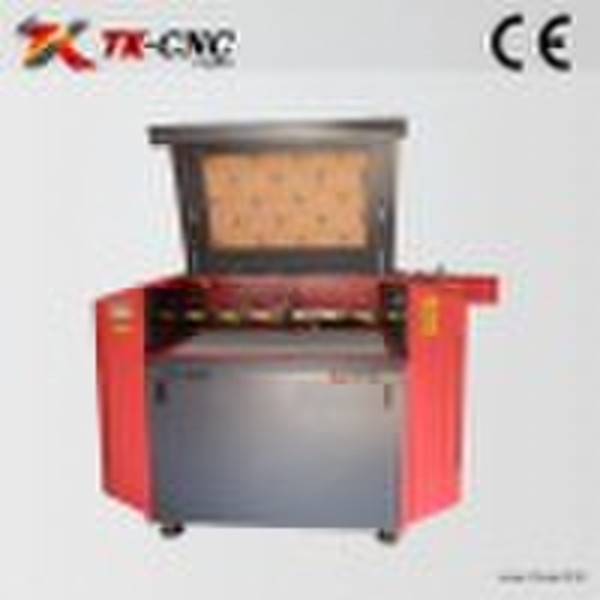

Laser engraving and cutting machine

Features: 1)The X,Y axis adopt imported strait guide line and step motor with speed-reducing driven system to approve cutting stable and cutting face smooth.2) High strength, high stiffness of the mechanical structure design3) With imported gilded lens with silicon base and two-layer focusing system, the equipment produces smaller facular and stronger.4) Industry Water-coolingsystem with self-protective function assures stable continuous working.5) CE certificationApplicable industries & Materials:Billboard, crystal, paper, bamboo, garments and leather industries, embroidery, double color boards, acrylic, glass, wood planks, rubber, marble.Technical parameters: Machine ModelTK-6090 Engraving MachineLaser-typeHermetic and detached CO2 laser tubeLaser-power60W (80w for option)Control and DriveSpeedy DSP Controlling, Stepper MotorMax Engraving Speed1200mm/sMax Cutting Speed500mm/sRepeating Location0.01mmMinimum CharacterChinesecharacter1.5mm,crisscross-row1mmMaxPower1500WWorking Travel Area600*900mm, 600mm width with infinity material-feedingN.W202kgG.W274kgPacking Size1870* 1240* 1200mmDeliveryDate15working daysOptionalEquipment:1.Rotaryattachment 2.Motorizedup-downtable 3.Water-coolingunit 4.Red-lightposition 5.Vacuumtable 6.DSPOff-lineoperationwithUSBflashGuarantee & after- sales Service:1) Laser tubes guarantee 6 months. While the whole machine guaranteed for 1 year.2) 24-hour technical support by email or calling3) User-friendly English manual and operation video CD.
